A transformer can remain in service for decades, but its reliability depends heavily on the condition of its insulation system. For oil-immersed transformers, insulating oil is not simply a coolant. It provides electrical insulation, transfers heat away from the windings and core, and interacts continuously with the solid cellulose insulation.

As transformer oil ages, moisture, particles, dissolved gases, oxidation products and other contaminants can accumulate. These changes may reduce dielectric strength, accelerate insulation aging and affect the transformer's ability to operate safely under electrical and thermal stress.

This is why transformer oil purification is an important part of transformer maintenance. It helps keep the oil in serviceable condition and, when applied at the right time, can reduce the risks associated with contaminated or degraded insulating oil.

Why Does Transformer Oil Affect Reliability?

The reliability of an oil-filled transformer depends on the condition of both its liquid and solid insulation.

Transformer oil has two main functions:

• Provide electrical insulation between energized components and ground.

• Transfer heat generated by the core and windings to the cooling system.

When the oil becomes contaminated, both functions can be affected.

Moisture can reduce the dielectric strength of the oil and accelerate the aging of cellulose insulation. Solid particles can affect insulation performance and may become particularly problematic when combined with moisture. Oxidation can produce acids and sludge, which can further affect the oil-paper insulation system and heat transfer.

The important point is that oil deterioration is not always immediately visible. A transformer may continue operating normally while its insulation condition is gradually getting worse.

IEC 60422:2024 guides monitoring and maintaining mineral insulating oils in transformers and other electrical equipment, including procedures for oil reconditioning and reclaiming when required.

Moisture Is One of the Main Risks

Among the contaminants found in transformer oil, water deserves particular attention.

Moisture can enter through the breathing system, seals, storage and maintenance activities. It can also be generated as the cellulose insulation ages. More importantly, water does not remain permanently in one location.

The distribution of moisture between transformer oil and paper insulation changes with temperature. As the transformer heats up, some moisture can move from the paper into the oil. When the transformer cools, moisture can move in the opposite direction.

This makes moisture management more complicated than simply measuring the water content of an oil sample.

High moisture levels can reduce oil breakdown voltage and accelerate the deterioration of solid insulation. The U.S. Bureau of Reclamation notes that moisture is particularly harmful to transformer insulation and that keeping the transformer as dry as possible helps extend insulation life.

For this reason, a transformer oil purifier should not be viewed simply as a machine for removing visible water. An effective purification process needs to address dissolved moisture as well as free or emulsified water when the condition of the oil requires it.

What Happens When Transformer Oil Becomes Contaminated?

Oil contamination normally develops gradually rather than appearing as a single failure event.

1. Moisture reduces insulation performance

Water lowers the dielectric strength of insulating oil, increasing the possibility of electrical breakdown under high electrical stress.

Moisture also affects the cellulose insulation surrounding transformer windings. Once paper insulation becomes significantly wet, simply removing water from the oil may not immediately restore the condition of the entire insulation system.

2. Particles affect oil cleanliness

Dust, fibers, carbon and other solid particles can enter the oil during manufacturing, maintenance or operation.

Fine filtration can remove suspended particles and improve oil cleanliness. This is especially important when the oil is being returned to service after maintenance or when testing indicates that solid contamination is present.

3. Oxidation produces acids and sludge

Transformer oil is exposed to heat and oxygen throughout its service life. Oxidation can gradually produce acidic compounds and sludge.

Sludge can deposit on internal surfaces and cooling passages, potentially affecting heat transfer. Oxidation products can also contribute to deterioration of the oil-paper insulation system.

At this stage, simple particle filtration may no longer be enough. Depending on oil test results, the required treatment may involve reconditioning or regeneration rather than filtration alone.

How Does Transformer Oil Purification Improve Reliability?

The purpose of purification is not to make old oil “look clean.” The real objective is to restore important oil properties to a condition suitable for continued service.

A properly selected purification process can help remove:

• Free and dissolved moisture

• Suspended particles and impurities

• Dissolved gases

• Some forms of oil contamination that affect electrical performance

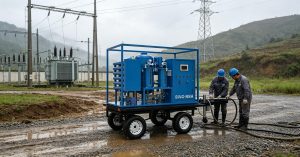

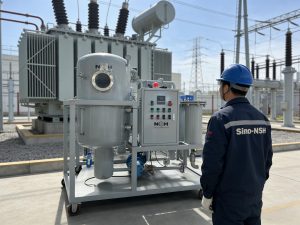

A vacuum transformer oil purifier is commonly used when moisture and dissolved gas removal are important. Under vacuum, water can be removed at a lower temperature, while dissolved gases can be extracted from the oil.

The oil is normally heated to a controlled temperature, passed through filtration stages and exposed to vacuum conditions where moisture and gases are separated from the oil.

The exact process should be selected according to the transformer type, oil condition, capacity and test results rather than simply choosing the machine with the highest vacuum level.

Oil Purification Should Start With Oil Testing

One common mistake is to treat transformer oil purification as a routine operation that can be performed without checking the condition of the oil first.

Oil testing should provide the starting point.

Depending on the maintenance program, important indicators may include:

• Breakdown voltage (BDV)

• Water content

• Acidity

• Dielectric dissipation factor

• Oil appearance and particle contamination

• Dissolved gas analysis (DGA), where applicable

Breakdown voltage testing is standardized by IEC 60156, which defines the method for determining the breakdown voltage of insulating liquids.

DGA serves a different purpose. It can help identify gases associated with developing electrical or thermal faults inside an oil-filled transformer. Therefore, purification and DGA should not be confused: purification treats the oil, while diagnostic testing helps determine what is happening inside the transformer.

When Is Transformer Oil Purification Necessary?

There is no single purification schedule that is suitable for every transformer.

The need for treatment depends on transformer age, voltage level, operating conditions, oil condition, moisture exposure and maintenance history.

Purification may be considered when oil test results show deterioration such as:

• Increasing moisture content

• Low or declining breakdown voltage

• Excessive particle contamination

• Visible water or emulsification

• Increased gas content associated with oil condition

• Oil deterioration affecting normal transformer operation

For some transformers, preventive oil treatment during planned maintenance may be appropriate. For others, condition-based treatment is more practical.

The important principle is to treat the oil before deterioration becomes a transformer reliability problem, while recognizing that purification cannot repair every type of insulation or transformer fault.

Vacuum Purification vs. Simple Filtration

Not every oil treatment system performs the same function.

A conventional filter can remove suspended solid particles, but filtration alone cannot effectively remove dissolved moisture and dissolved gases.

When water and gas removal are important, a vacuum dehydration and degassing system is generally more appropriate.

For heavily degraded oil, however, vacuum dehydration and fine filtration may still not be sufficient. High acidity, severe oxidation and sludge formation can require a different treatment approach, such as oil regeneration or reclamation.

This distinction is important when selecting a transformer oil purification system. The machine should be matched to the actual contamination problem rather than selected only according to processing capacity.

Why Purification Is Part of Transformer Reliability Management

Transformer reliability is ultimately about preventing small deterioration from becoming a major failure.

Moisture can accelerate insulation aging. Contaminants can reduce dielectric performance. Oxidation can produce acids and sludge. Thermal and electrical stresses can further accelerate these processes.

Oil purification cannot eliminate every transformer failure mechanism, but maintaining the insulating liquid in good condition removes several important sources of risk.

More importantly, oil treatment works best as part of a broader condition-based maintenance program that combines oil testing, DGA, inspection and operating data.

IEC 60422:2024 specifically addresses the supervision and maintenance of mineral insulating oils and includes guidance on reconditioning and reclaiming oil when appropriate.

How to Choose a Transformer Oil Purifier

The right purifier depends on the problem that needs to be solved.

Before selecting equipment, consider:

1. Oil condition — moisture, BDV, particles, acidity and other test results.

2. Transformer voltage and application — higher-voltage equipment may require stricter oil treatment requirements.

3. Required flow rate — select a capacity appropriate for the transformer oil volume and maintenance schedule.

4. Dehydration and degassing requirements — vacuum treatment is important when dissolved water and gases need to be removed.

5. Filtration accuracy — the filtration stages should match the required oil cleanliness.

6. Online or offline treatment — the treatment method must be compatible with the transformer and the manufacturer's operating requirements.

A well-designed vacuum transformer oil purifier should therefore be selected as part of the maintenance strategy, not simply as an independent piece of equipment.

FAQ

Does transformer oil purification extend transformer life?

It can help extend service life by maintaining the insulating oil's condition and reducing moisture and contamination that contribute to insulation deterioration. However, purification cannot reverse severe damage to cellulose insulation or correct internal transformer faults.

Can oil purification remove moisture from transformer paper insulation?

It can help reduce moisture in the overall oil-paper system by continuously removing moisture from the oil, which can encourage moisture migration from the solid insulation into the oil. However, the effectiveness depends on transformer temperature, insulation condition and the overall treatment process.

Is vacuum purification better than ordinary oil filtration?

If the main problem is dissolved water or gas, vacuum purification is generally more suitable than ordinary filtration. If the main problem is only suspended particles, fine filtration may be sufficient.

How often should transformer oil be purified?

There is no universal interval. Oil testing and transformer operating conditions should determine whether treatment is necessary. Condition-based maintenance is generally more meaningful than applying the same purification interval to every transformer.

Conclusion

Transformer oil purification is important because the condition of insulating oil directly affects the electrical and thermal performance of an oil-filled transformer.

Keeping moisture, particles and other contaminants under control helps maintain dielectric strength, reduce stress on the oil-paper insulation system and support reliable transformer operation.Instead, test the oil, identify the source of deterioration, select the right treatment process,

The best approach is not simply to purify oil as often as possible. It is to test the oil, understand the source of deterioration, select the appropriate treatment process and verify the oil condition after purification.

For transformer operators, this turns oil purification from a routine maintenance task into a practical part of long-term transformer reliability management.

If oil testing indicates high moisture, low breakdown voltage or significant contamination, the next step is to determine whether filtration, vacuum dehydration, degassing or a more advanced treatment process is required. Choosing the right transformer oil purification system based on the actual oil condition can make maintenance more effective and avoid unnecessary treatment.
