A high vacuum oil purifier is used to remove moisture, dissolved gases and solid contaminants from industrial oil. It is particularly important in transformer oil treatment, where moisture and gas content can affect electrical insulation performance. Depending on its configuration, the equipment can also be used for turbine oil and compatible industrial lubricants.

The right purifier depends on the oil type, contamination level and required treatment results.

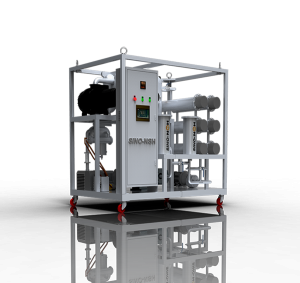

How Does a High Vacuum Oil Purifier Work?

A high vacuum oil purifier combines vacuum separation, controlled heating and fine filtration. Under reduced pressure, water evaporates at a lower temperature, allowing moisture and gases to be separated from the oil. Filtration stages then remove suspended particles.

Unlike a conventional oil filter that mainly removes solid contaminants, a high-vacuum system also addresses moisture and gas contamination.

However, purification does not automatically reverse oil oxidation, restore depleted additives or repair chemically degraded oil. Treatment requirements should be determined by testing the oil and identifying its actual condition.

Main Industrial Applications

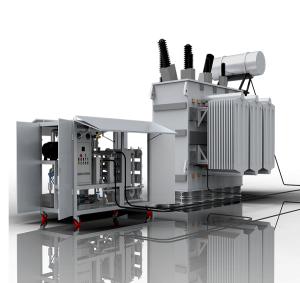

1. Transformer Oil Purification

Transformer oil serves as both an electrical insulator and a cooling medium. Excess moisture, dissolved gases and particles can compromise its performance, especially in high-voltage equipment.

High vacuum oil purifiers are commonly used for:

• Transformer oil treatment during installation and commissioning.

• Oil purification during transformer maintenance and overhaul.

• Treatment of compatible insulating oils used in other oil-filled electrical equipment.

• Vacuum oil filling when the equipment is designed for this operation.

For high-voltage transformers, important selection criteria include moisture removal, gas separation, outlet breakdown voltage and processing capacity.

2. Turbine Oil and Lubricating Oil Treatment

Steam turbines, hydroelectric generating units and industrial machinery rely on clean lubricating oil for reliable operation. Water ingress can contribute to corrosion, poor lubrication and persistent emulsions.

Depending on the application, a suitable purifier may combine vacuum dehydration, particle filtration and coalescing or demulsification technology.

Typical applications include turbine lubrication systems, compatible hydraulic control fluids, gear oil and other industrial lubricants. For emulsified turbine oil, confirm that the system provides the necessary water-separation capability.

3. Manufacturing, Metallurgy and Hydraulic Systems

Steel mills, manufacturing plants and metalworking facilities use hydraulic oil, gear oil, compressor oil and other lubricants under demanding operating conditions.

Oil purification can help control moisture and particle contamination, reducing the risk of hydraulic valve sticking, component wear and lubrication problems.

The treatment method should match the main contamination issue. Hydraulic systems may require particular attention to particle cleanliness, while oils contaminated with water may also need dehydration. Oil that has deteriorated chemically may require additional treatment or replacement.

4. Petrochemical and Railway Applications

Petrochemical facilities and railway operators use various lubricating and insulating oils that may require purification during maintenance.

Where continuous operation is essential, a suitably designed system may support offline or bypass treatment, provided the installation and operating procedures allow it.

Light fuels such as gasoline and diesel require special consideration because of their volatility and flammability. A standard high vacuum oil purifier should not be assumed suitable for these fluids. Equipment compatibility and explosion-protection requirements must be confirmed before use.

How to Choose the Right High Vacuum Oil Purifier

Before selecting equipment, identify the oil type, contamination level, target oil quality and required processing capacity.

For transformer oil: Focus on operating vacuum performance, moisture and gas removal, required breakdown voltage, and whether a single-stage or two-stage vacuum system is appropriate.

For turbine oil and lubricants: Check dehydration performance, demulsification capability where needed, filtration precision, heating and temperature control, and compatibility with the oil's viscosity and additives.

A higher vacuum rating alone does not guarantee better results. The system must meet the actual treatment requirements at the specified flow rate.

When requesting a quotation, provide the oil type, current oil test results, required outlet quality, processing capacity and any special installation requirements.

Frequently Asked Questions

Can a high vacuum oil purifier treat gasoline or diesel?

Only equipment specifically designed for the intended fuel and operating conditions should be considered. Volatility, flammability and hazardous-area protection must be evaluated before selecting a system.

What quality can purified transformer oil achieve?

A suitable purifier can reduce moisture, dissolved gases and solid contamination, potentially improving the oil's breakdown voltage. Actual results depend on the incoming oil condition, equipment configuration and operating conditions. Verify final quality through oil testing against the applicable project requirements.

Can purification restore degraded oil?

Purification can remove certain contaminants, but it cannot necessarily reverse oxidation or restore depleted additives. Oil testing is needed to determine whether purification is sufficient or replacement is required.

Find a Suitable Oil Purification System

Different oils require different treatment methods. Selecting equipment based on oil condition and required outlet quality helps avoid inadequate treatment or unnecessary investment.

Sino-NSH offers oil purification systems for transformer oil, turbine oil and other compatible industrial applications. Contact the technical team with your oil type, current oil condition and required processing capacity for a suitable equipment recommendation.
